HD156M-72
Classification:
We specialize in the R & D, manufacturing, sales and after-sales service of crystalline silicon solar cell modules, photovoltaic system engineering, and photovoltaic application products.
Hotline:
north of the Yangtze River18351051968 (Manager Lin)
south of the Yangtze River13773441912(Manager Hao)
隐藏域元素占位
- 产品描述
- Electrical performance parameters
- Load capacity
- Operation parameters
- Mechanical parameters
- Temperature coefficient
-
- Commodity name: HD156M-72
High-quality silicon wafer and battery technology ensure high conversion rate of components
Packaging materials and strict process ensure that the components are resistant to PID and snail lines
Through the sand dust, salt spray, ammonia corrosion test, can cope with harsh environment
Component current profiling maximizes system output efficiency
Excellent performance at low irradiance through battery process
High transparent self-cleaning tempered glass assists in additional power output and convenient maintenance Electrical parameters (standard test conditions) Maximum powerPm(W) 355 350 345 340 335 330 Power tolerancePm(W) 0~+5W 0~+5W 0~+5W 0~+5W 0~+5W 0~+5W Operating voltage at maximum power pointVm(V) 38.8 38.2 38.3 37.9 37.6 37.2 Operating current at maximum power pointIm(A) 9.14 8.64 9.02 8.97 8.91 8.86 open circuit voltage3003 (V) 47.4 46.7 47.7 47.3 46.9 46.6 Short-circuit currentIsc(A) 9.65 9.11 9.38 9.35 9.32 9.29 Component efficiency（%） 18.30 18.01 17.70 17.50 17.26 17.01 Standard test conditions: (air quality AM1.5, irradiance 1000W/m², battery temperature 25 ℃) under the measured value
-

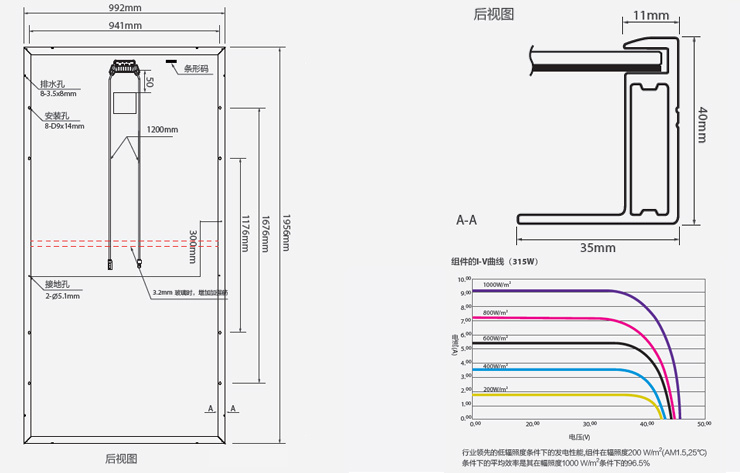

Mechanical parameters Solar cells 156x156mm monocrystalline silicon Cell type Set of 72 tablets (6x12) Component dimensions 1956x992x40mm weight 22.5KG/26KG glass 3.2mm/4mm high transparency, anti-reflection coated tempered glass Backplane white frame Silver, anodized aluminum Junction box Protection class IP67 cable 4mm², 1200mm PV cable connector Original MC4 or MC4 compatible Wind pressure/snow pressure 2400Pa/5400Pa* -
Temperature rating Rated battery operating temperature 45±2℃ Maximum power temperature coefficient -0.40%/℃ Open circuit voltage temperature coefficient -0.29%/℃ Temperature coefficient of short-circuit current 0.05%/℃ -
Limit parameters Operating temperature -40～＋85℃ Maximum system voltage 1000V DC(IEC) Maximum fuse current rating 15A -
quality assurance 12 years product warranty 25-year linear power guarantee For more information, please refer to the Product Quality Guarantee Certificate -
Packaging method Capacity per carton 26 tablets Loading capacity per 40-foot container 572 tablets
